NEWS
World’s First Non-Invasive
Ablative Fractional Cryofrequency
CRYOTECAR
Quality IBRAMED!
National Health
Surveillance Agency
National Institute
of Quality and Technology
ISO 13485
Technical support
nationwide
100% Brazilian
Technology
It comprises
six different therapies in one machine
Fractional Cryofrequency +
Cryofrequenc +
Cryotecartherapy (fusion therapy) +
Fractional Radiofrequency +
Radiofrequency +
Tecartherapy
Key Innovations
World's First Non-Invasive Ablative Fractional Cryo-Radiofrequency Device
World's First Cryocautery Equipment
The only cryofrequency equipment offering six therapy modes in one device
Single applicator supports both bipolar and monopolar modes
Four selectable frequencies (0.5, 1, 2.4, 4.0 MHz) allow multi-depth targeting
First machine combining fractional technology and cooling (Fractional Cryofrequency)
First machine combining fractional technology and cooling (Fractional Cryofrequency)
First device with autoclavable fractional applicator tips
44 pre-programmed protocols for user convenience
Most portable device in its category
Exclusive autoclavable tips for intimate aesthetics

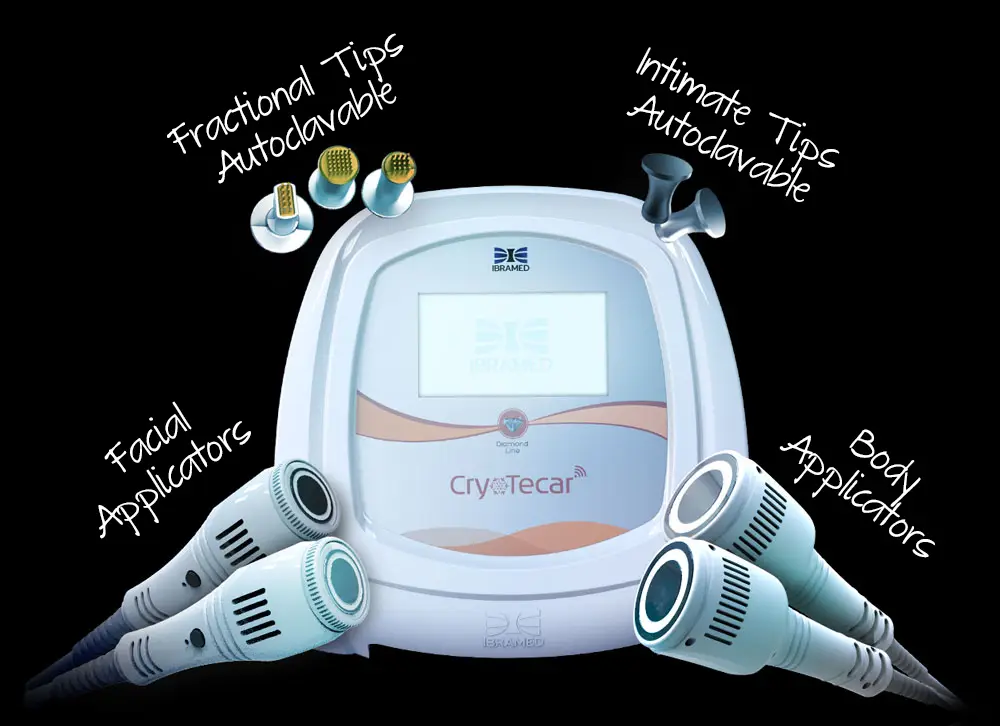

Applicators & Tips
Versatile and comfortable applicators include capacitive and resistive types, operational in monopolar or bipolar mode:
- 2 body options (Large applicator: ~50‑55 cm²)
- 2 facial options (Precise applicator: 13.2 cm²)
- Fractional, non‑invasive, autoclavable tips (sizes S, M, L); intimate‑area tips compatible with condom use
Body applicator
Facial applicator
Tips
Fractional
Autoclavable
Non-invasive
- Exclusive tips
- World's first with the non-invasive ablative technique!
- Autoclavable tips
- Size options: S, M, and L
- Intimate attachments suitable for use with a condom
- Better cost-efficiency - no need for disposal
Adjustable cooling
down to -6º C
Total power: 1200 W
RMS power: 150W
Soft Touch
Display
Protocols
embasados científicamente, para guiar o profissional terapeuticamente.
Aesthetics
Aesthetics
Aesthetics
Additional Information
Product Description
The CRYOTECAR equipment features the following therapies:
Tecarterapy (TECAR – Capacitive and Resistive Electric Transfer Therapy)
Radiofrequency
Cryotecartherapy (CRIOTECAR)
Cryofrequency
Fractionated Cryofrequency
Fractionated Radiofrequency
TECARTHERAPY and RADIOFREQUENCY are non-invasive therapies that utilize capacitive and/or resistive applicators, aiming to promote tissue heating, which assists in the temporary improvement of skin flaccidity, cellulite treatment, and localized fat treatment. Consequently, these therapies can be used for treatments in facial, body, and intimate aesthetics.
Cryotecartherapy (CRIOTECAR) and Cryofrequency feature cooled tips that allow for a more comfortable increase in tissue temperature, aiding in the temporary improvement of skin flaccidity and the reduction of localized fat.
TECARTHERAPY, RADIOFREQUENCY, CRIOTECARTHERAPY, and CRYOFREQUENCY technologies can be used as monopolar and bipolar, with two types of electromagnetic wave emission: capacitive, where energy transfer occurs through an anodized aluminum tip, keeping electric charges closer to the applicator and promoting more superficial heating; and resistive, which transfers energy through a stainless steel tip, promoting temperature increase in deeper tissues.
FRACTIONATED CRYOFREQUENCY and FRACTIONATED RADIOFREQUENCY feature specific tips where energy distribution occurs in small, equidistant points, producing microscopic columns of thermal lesions in the epidermis and upper dermis, promoting the temporary improvement of skin flaccidity, and can be used in facial and body aesthetics.
Indications
Assist in the treatment of skin flaccidity
Assist in the treatment of localized fat
Assist in the treatment of cellulite
Assist in the treatment of facial rejuvenation
Assist in the treatment of vulvovaginal rejuvenation
Accessories included with the equipment
- 01 *PP Female Power Cord I.E.C. 3 X 0.75 X 1500MM
- 01 *Small Resistive Applicator
- 01 *Small Capacitive Applicator
- 01 *Large Resistive Applicator
- 01 *Large Capacitive Applicator
- 01 *Fractionated Facial Tip S
- 01 *Fractionated Facial Tip M
- 01 *Fractionated Facial Tip L
- 01 *Resistive Intimate Tip
- 01 *Capacitive Intimate Tip
- 01 *Tip Fixing Ring
- 01 *Metal Electrode Dispersive Plate
- 01 *Metal Electrode Dispersive Plate Cable
- 01 *Self-Adhesive Dispersive Electrode
- 01 *Cable for Self-Adhesive Dispersive Electrode
- 01 *Foot Switch – P10 Plug
- 01 *Cleaning Brush
- 01 *Bidistilled Glycerin (Process No. 25351.354268/2017 – 11)
- 01 *Gel Tube – 100g (ANVISA 80122200001)
Product Technical Specifications
Technical Information
- Dual Voltage 100/240 V | 50/60 Hz
Dimensions
- Width 38.40 cm
- Height 16.38 cm
- Length 37.18 cm
- Net Weight 7.4 kg
Cryofrequency and Cryotecartherapy
Cryotecartherapy (Criotecar) and Cryofrequency are the association of the cooling effects of Cryotherapy and the heat of Radiofrequency being delivered to the tissue simultaneously. Both technologies feature cooled tips that allow for a more comfortable increase in tissue temperature, aiding in the improvement of skin flaccidity and the reduction of localized fat.
If fractionated radiofrequency does not have microneedles, how does the ablation process work?
In other equipment with Fractionated Radiofrequency, the use of microneedles is common, as the technology generates a current between them, creating a heat network. Since needles are used, the treatment is generally invasive. However, this is not the case with Cryotecar, as applicators were developed to resemble microneedles but are flat at the tip—meaning there is no puncture and no need for disposal, as is required with invasive options. For sanitization, you simply autoclave them.
But now you might be wondering: if in Fractionated Radiofrequency with microneedles they make micro-punctures in the skin and help stimulate the healing process for collagen production, how does it work in Cryotecar? Well, this aesthetic device is the only one that performs tissue ablation through thermal lesions, causing a healing process that also produces collagen, making it highly effective for skin flaccidity.
Fractionated Radiofrequency allows you to treat skin flaccidity, stretch marks, intimate aesthetics, wrinkles, and expression lines—and now in a much more comfortable and optimized way.
Tecartherapy and Radiofrequency
TECARTHERAPY and Radiofrequency are non-invasive therapies that utilize capacitive and/or resistive applicators, aiming to promote tissue heating, which assists in the improvement of skin flaccidity, cellulite treatment, and localized fat treatment. Consequently, these therapies can be used for treatments in facial, body, and intimate aesthetics.
Monopolar and Bipolar
TECARTHERAPY, Radiofrequency, Cryotecartherapy, and Cryofrequency technologies can be used as monopolar and bipolar, with two types of electromagnetic wave emission: capacitive, where energy transfer occurs through an anodized aluminum tip, keeping electric charges closer to the applicator and promoting more superficial heating; and resistive, which transfers energy through a stainless steel tip, promoting temperature increase in deeper tissues.
Fractionated tips
Fractionated Cryofrequency and Fractionated Radiofrequency feature specific tips where energy distribution occurs in small, equidistant points, producing microscopic columns of thermal lesions in the epidermis and upper dermis, promoting the improvement of skin flaccidity, and can be used in facial and body aesthetics.
PRE-PROGRAMMED TECARTHERAPY PROTOCOLS
Localized fat
Flaccid cellulite
Edematous cellulite
Fibrotic cellulite
Skin flaccidity
Neck flaccidity
Cleavage flaccidity
Facial rejuvenation
Submental localized fat
Vulvovaginal flaccidity
Vulvovaginal flaccidity + fat
Pubic skin flaccidity
Pubic localized fat
PRE-PROGRAMMED RADIOFREQUENCY PROTOCOLS
Localized fat
Flaccid cellulite
Edematous cellulite
Fibrotic cellulite
Skin flaccidity
Cleavage flaccidity
Neck flaccidity
Facial rejuvenation
Submental localized fat
Vulvovaginal flaccidity
PRE-PROGRAMMED CRIOTECARTHERAPY PROTOCOLS
Localized fat
Flaccid cellulite
Edematous cellulite
Fibrotic cellulite
Skin flaccidity
Neck flaccidity
Cleavage flaccidity
Facial rejuvenation
Submental localized fat
PRE-PROGRAMMED CRYOFREQUENCY PROTOCOLS
Localized fat
Flaccid cellulite
Edematous cellulite
Fibrotic cellulite
Skin flaccidity
Neck flaccidity
Cleavage flaccidity
Facial rejuvenation
Submental localized fat
ANVISA REGISTRATION
- ANVISA Registration: 10360319024
