new
Sonopulse II
therapeutic ultrasound

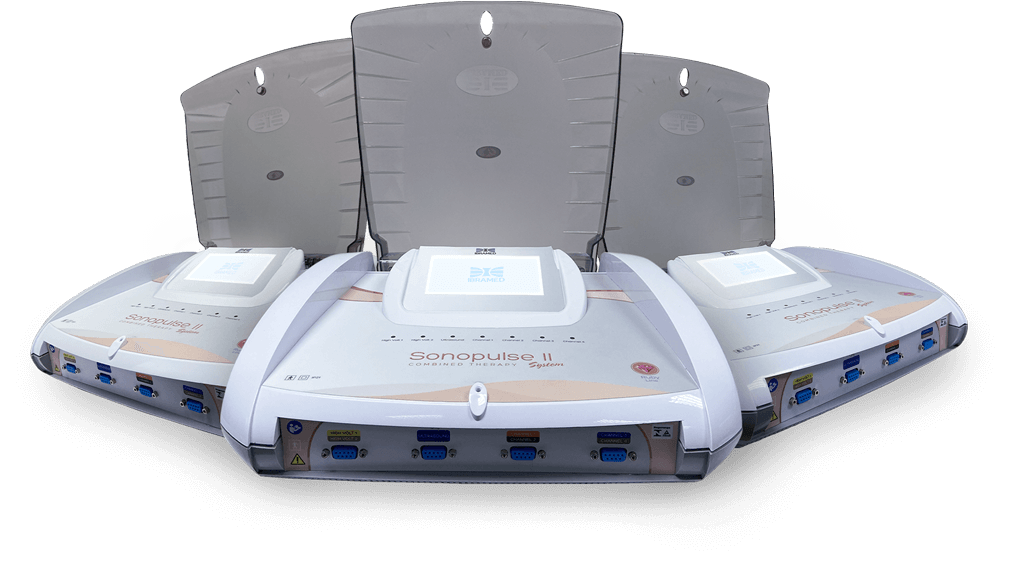

Sonopulse II System is a microcontrolled device that enables electrical stimulation through currents: Russian, Interferential, Polarized, High Volt, Aussie, TENS, FES and Microcurrent, alone or associated with therapeutic ultrasound.

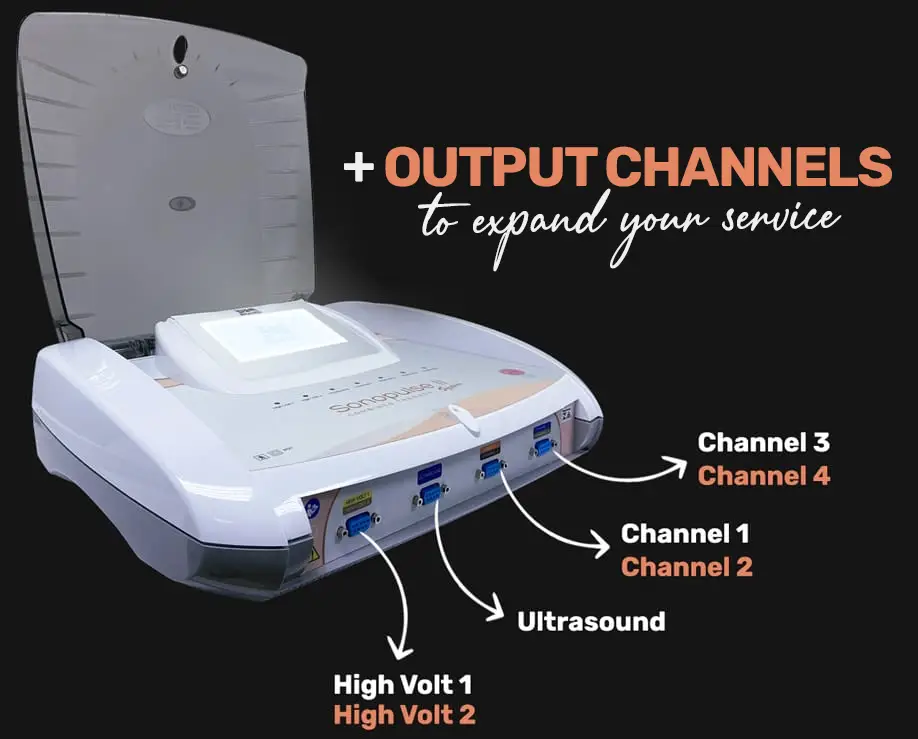

It has 4 channels for Russian, Aussie, Interferential, Tens and Fes currents and 2 channels for High Volt, Polarized and Microcurrents.
3
transducers
included
1 cm²
6 cm²
10 cm²
It also allows the adjustment of ultrasound emission, which can be continuous, pulsed or super pulsed, with the second and third modes having pulse repetition frequencies of 100 Hz, 48 Hz or 16 Hz and with a pulse ratio of 3/4 ( 75%), 1/2 (50%) and 1/5 (20%).
The user can choose the frequency, making it possible to operate in different depth levels. Furthermore, it also allows for adjustment
of ultrasound emission.
combined Therapy
Deliver more results!
ultrasound
+
ELECTRIC CURRENTS
SUPER PULSE mode
75%
Most effective way to treat localized fat, as it combines Cavitation, the Thermal Effect and Acoustic Shock Waves in adipose tissue.
Continuous or Pulsed Ultrasound - 20% / 50% / 75%
Pulse Repetition Frequency - 16MHz / 48MHz / 100MHz
pre-programmed
Protocols
The protocols are divided into rehabilitation and aesthetics
There are a lot of treatment options and ease of care!
9
Therapeutic
Currentes
- » RUSSIAN CURRENT «
- » TETRAPOLAR INTERFERENTIAL CURRENT «
- » BIPOLAR INTERFERENTIAL CURRENT «
- » HIGH VOLT CURRENT «
- » POLARIZED CURRENT «
News!
- » Aussie
- » Microcurrent
- » Tens
- » Fes
About the
EQUIPMENT
Indications
Ultrasound:
- • Sonophoresis
- • Helps increase local blood circulation
Correntes:
- • To assist in pain relief
- • To assist in muscle strengthening
- • To assist in the treatment of motor re-education
- • To assist in skin healing treatment
- • To assist in increasing local blood circulation
Acessórios
- • PP Female Cable I.E.C. 2 X 0.75 X 1500 mm
- • 10 cm² Silicone Head
- • 6 cm² Silicone Head
- • 1 cm² Silicone Head
- • White Double Electrostimulation Cable – Red Pins and Black Pin
- • Single Wire Dispersive Cable - Black Pin
- • Elastic Strap for Fixing Electrodes
- • Red Alligator Clip
- • Black Alligator Clip
- • Conductive Rubber Electrode 5 cm X 5 cm
- • Conductive Rubber Electrode 12 cm X 8 cm
- • Conductive Electrode Set 80 X 75 Black
- • Natural Sponge 7 cm X 7 cm
- • Natural Sponge 14 cm X 10 cm
- • Acupuncture Needles 0.25 mm X 50 mm (Pack of 10 Needles)
- • Tube with gel (Cap. 100 grams)
Technical
characteristics
- • Width: 37,5 cm
- • Depth: 31,5 cm
- • Height: 12,5 cm
- • Sonopulse II System Net Weight: 3,2 kg
- • Bivolt 100/240 V | 50/ 60 Hz
Optional
accessories
- • Electrode for Electroporation “S”
- • Electrode for Electroporation “M"
- • Electrode for Electroporation “L”
- • Electrode for Facial Electroporation
- • Applicator for Electroporation
